ShenZhen GreenTouch Technology Co.,Ltd

IP65 Capacitive Waterproof Dustproof Touchscreen Monitor 17"

  • $135
    ≥1
    Bag/Bags
Payment Type:
L/C,T/T,Paypal,Western Union
Incoterm:
FOB,CIF,EXW
Min. Order:
1 Bag/Bags
Delivery Time:
30 Days
Transportation:
Ocean,Land,Air
Port:
ShenZhen,HongKong
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.GT-TM-1702C-CTW

BrandGreenTouch

Warranty period (years)1-year

CertificationFCC, ce, RoHS, other

colourBlack

screen ratio5:4

Screen typeLED

Whether to bring its own speakersNo

Vertical viewing angle160°

After-sales serviceReturn and Replacement, Repair

product statusNew

Response time8ms

Interface TypeDVI, HDMI, VGA, usb, DP

Contrast1000:1

Widescreenyes

Panel typeTFT

place of originChina

characteristicTouch Screen

useIndustrial

Horizontal viewing angle170°

Supply Ability & Additional Informations

PackagingCarton + Foam

Productivity1000000

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability1000000

CertificateISO9001 And ISO14001

HS Code8528591090

PortShenZhen,HongKong

Payment TypeL/C,T/T,Paypal,Western Union

IncotermFOB,CIF,EXW

Delivery Time30 Days

Packaging & Delivery
Selling Units:
Bag/Bags
Package Type:
Carton + Foam

Open Frame For Capacitive Touch Monitor 2C


Based on GreenTouch's Touch Screen monitor technology platform, Our IP65 capacitive touchscreen monitor provides features that are ideal for demanding industrial and outdoor applications.Increased brightness , complete dust and water protection according to IP65 protection class and a robust, sealed enclosure,so our Touch Monitor can be called waterproof Touch Screen Monitor and dustproof touch screen monitor.For connection, GreenTouch provides an all-in-one cable solution with HDMI ,VGA,DVI,DP connections, USB for touch.



Product Overview

GreenTouch's Open Frame Touch Monitor 2C series(10.1-55 inches) delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product .Designed with reliability from the start, They deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses.

2C projected capacitive 10-point touch, sensitive sensing, accurate fixed point, anti-jamming positioning technology, small-strength touch has both sensing, fast response, achieving super positioning and precise tracking. The touch is detected when a human finger is placed on the glass When the sensor grid will change. With the help of the covered glass, the technology has high durability, even if the glass is scratched, the touch function will not be affected. It provides perfect image performance and can work with human fingers (also in latex with gloves) and a stylus.

Waterproof Touch Screen Monitor


Product Features

Pure flat front panel ,adopt A+ grade original industrial LED screen.

Waterproof, dustproof and explosion-proof :IP65 (front) IK08 (front).

Industrial black metal frame,durable and reliable.
Good sealing performance,passed EMC anti-interference testing.

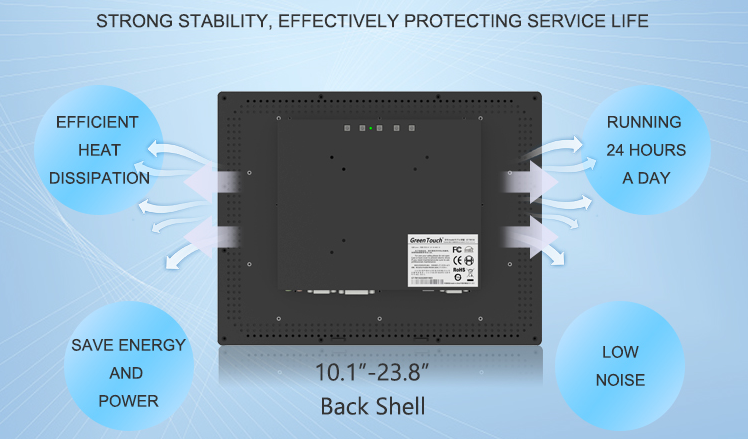

Dense ventilation holes on the back, efficient heat dissipation.

Uses the most advanced LED backlight technology,save energy and power.

Optional external mounting bracket and standard VESA mounting.

Running 24 hours a day.


IP65 Capacitive Touchscreen Monitor


Product Parameters

Product Name: Open Frame Touch Monitor Display Type: Active Matrix TFT LCD, LED Backlight
Diagonal Dimension: 17 " diagonal P/N: GT-TM-1702C-CTW
Display Size 385mm(W) x317 mm(H),Thickness: 47mm Active Area: 337.92mm(H) x 270.34mm(V)
Resolution 1280 x 1024 Display Colors: 16.7M
Brightness: 250 nits Contrast Ratio: 1000:1
Response Tme 8 msec Touch Type: Capacitive,10 points touch
MTBF: 50,000 Hours Video Formats: VGA DVI HDMIDP(optional )
View Angle: Horizontal (left / right): ± 85 ° or total 170 ° View Angle: Vertical (up / down): ± 80 ° or a total of 160 °
Temperature: Operating: 0°C to 40°C Temperature: Storage: -20°C to 60°C
Humidity: Operating: 20% to 80%(Non-condensing) Humidity: Storage: 10% to 90% (Non-condensing)
OSD: Digital OSD Mounting Options: VESA MountingOpen Bracket Mounting
Warranty: 1 Year Agency Approvals: FCC、RoHS、CECBCCCHDMI
Input Video Connector: Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector.
Power: External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONSExternal DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm; Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm);
User Controls: OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default, Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu.


Engineering Drawing:GT-TM-1702C-CTW

1


2


Other Show

2Dustproof Touch Screen Monitor15.6 Inch Touch Screen Monitor


Product Customizable

GreenTouch provides a wide range of customization options to meet your requirements, including product size or structure,customer Logo,LCD panel brightness (250nits-1000nits),glass of surface treatment AG,AR,AF,display ports(optional VGA+DVI,VGA+DVI+HDMI,VGA+DVI+HDMI+DP or more).


Product Application

555555555555555


Other Products

We have our own brand -GreenTouch,already established full-automatic production line and professional sales&after-sales team.In addition to a variety of touch monitor, we also supply 4 Wire Resistive Touch Screen, 5 Wire Resistive Touch Screen,Capacitive Touch Screen,Interactive Touch Foil,Infrared Touch Frame,touch All-in-one PC and other touch products.


Looking for ideal Waterproof Touch Screen Monitor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the IP65 Capacitive Touchscreen Monitor are quality guaranteed. We are China Origin Factory of Dustproof Touch Screen Monitor. If you have any question, please feel free to contact us.
