ShenZhen GreenTouch Technology Co.,Ltd

  • 10.1 Inch Small Touch Screen Monitor Indoor Display
  • 10.1 Inch Small Touch Screen Monitor Indoor Display
  • 10.1 Inch Small Touch Screen Monitor Indoor Display
  • 10.1 Inch Small Touch Screen Monitor Indoor Display
  • 10.1 Inch Small Touch Screen Monitor Indoor Display
  • 10.1 Inch Small Touch Screen Monitor Indoor Display

10.1 Inch Small Touch Screen Monitor Indoor Display

Payment Type:
L/C,T/T,Paypal,Western Union
Incoterm:
FOB,CIF,EXW
Min. Order:
1 Bag/Bags
Delivery Time:
30 Days
Transportation:
Ocean,Land,Air
Port:
ShenZhen,HongKong
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.GT-TM-1012C-CTW

BrandGreenTouch

Warranty period (years)1-year

CertificationFCC, ce, RoHS, BIS(ISI)

colourBlack

screen ratio16:10

seriesFor Business

Flatness ratio16:10

Screen typeLED

Horizontal viewing angle160°

Whether to bring its own speakersNo

Vertical viewing angle160°

After-sales serviceReturn and Replacement, Repair

product statusNew

Response time8ms

Interface TypeDVI, HDMI, VGA, usb

Contrast600:1

Widescreenyes

Panel typeTFT

place of originChina

characteristicTouch Screen

useFor Business

Supply Ability & Additional Informations

PackagingCarton + Foam

Productivity1000000

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability1000000

CertificateISO9001 And ISO14001

HS Code8528591090

PortShenZhen,HongKong

Payment TypeL/C,T/T,Paypal,Western Union

IncotermFOB,CIF,EXW

Delivery Time30 Days

Packaging & Delivery
Selling Units:
Bag/Bags
Package Type:
Carton + Foam


Open Frame For Capacitive Touch Monitor


GreenTouch continually leads the industrial and commercial outdoor and indoor Touch Screen display monitor market with new products, such as introduction of a 10.1 inch Touch Screen Monitor .Please used the convenient of 10.1" touchscreen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system.It by utilizing high grade components. This small touch screen monitor is used for industrial, in-car computing applications or any other applications where a small, durable display is requiredto.


Product Overview

GreenTouch's Open Frame Touch Monitor 2C series(10.1-55 inches) delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product .Designed with reliability from the start, They deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses.

2C projected capacitive 10-point touch, sensitive sensing, accurate fixed point, anti-jamming positioning technology, small-strength touch has both sensing, fast response, achieving super positioning and precise tracking. The touch is detected when a human finger is placed on the glass When the sensor grid will change. With the help of the covered glass, the technology has high durability, even if the glass is scratched, the touch function will not be affected. It provides perfect image performance and can work with human fingers (also in latex with gloves) and a stylus.

Small Touch Screen Monitor

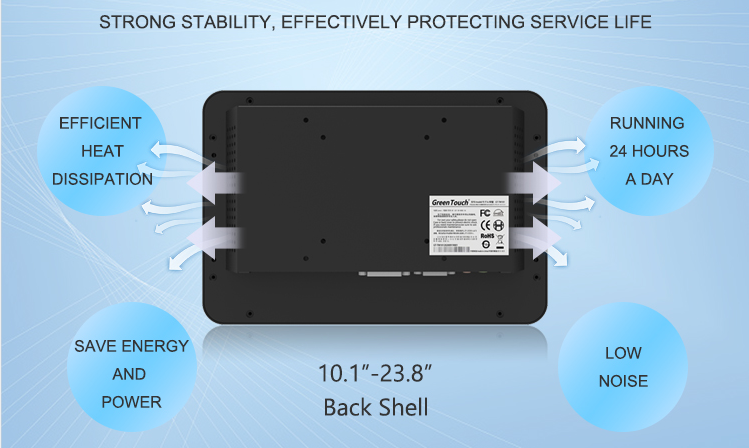

Product Features

Pure flat front panel ,adopt A+ grade original industrial LED screen.

Waterproof, dustproof and explosion-proof :IP65 (front) IK08 (front).

Industrial black metal frame,durable and reliable.
Good sealing performance,passed EMC anti-interference testing.

Dense ventilation holes on the back, efficient heat dissipation.

Uses the most advanced LED backlight technology,save energy and power.

Optional external mounting bracket and standard VESA mounting.

Running 24 hours a day.


10.1 Inch Touch Screen Monitor


Product Parameters

Product Name: Open Frame Touch Monitor Display Type: Active Matrix TFT LCD, LED Backlight
Diagonal Dimension: 10.1 " diagonal P/N: GT-TM-1012C-CTW
Display Size 265mm(W) x179.5 mm(H),Thickness: 45mm Active Area: 216.96mm(H) x 135.6mm(V)
Resolution 1280 x 800 Display Colors: 16.7M
Brightness: 330 nits Contrast Ratio: 600:1
Response Tme 8 msec Touch Type: Capacitive,10 points touch
MTBF: 50,000 Hours Video Formats: VGA DVI HDMIDP(optional )
View Angle: Horizontal (left / right): ± 80 ° or total 160 ° View Angle: Vertical (up / down): ± 80 ° or a total of 160 °
Temperature: Operating: 0°C to 40°C Temperature: Storage: -20°C to 60°C
Humidity: Operating: 20% to 80%(Non-condensing) Humidity: Storage: 10% to 90% (Non-condensing)
OSD: Digital OSD Mounting Options: VESA MountingOpen Bracket Mounting
Warranty: 1 Year Agency Approvals: FCC、RoHS、CECBCCCHDMI
Input Video Connector: Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector.
Power: External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONSExternal DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm; Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm);
User Controls: OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default, Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu.


Engineering Drawing:GT-TM-1012C-CTW

Indoor Touch Screen Display Monitor


2


Other Show

22244


Product Customizable

GreenTouch provides a wide range of customization options to meet your requirements, including product size or structure,customer Logo,LCD panel brightness (250nits-1000nits),glass of surface treatment AG,AR,AF,display ports(optional VGA+DVI,VGA+DVI+HDMI,VGA+DVI+HDMI+DP or more).


Product Application

555555555555555


Other Products

We have our own brand -GreenTouch,already established full-automatic production line and professional sales&after-sales team.In addition to a variety of touch monitor, we also supply 4 Wire Resistive Touch Screen, 5 Wire Resistive Touch Screen,Capacitive Touch Screen,Interactive Touch Foil,Infrared Touch Frame,touch All-in-one PC and other touch products.

Looking for ideal Small Touch Screen Monitor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Indoor Touch Screen Display Monitor are quality guaranteed. We are China Origin Factory of 10.1 Inch Touch Screen Monitor. If you have any question, please feel free to contact us.

Product Categories : Touch Monitor > Open Frame For Capacitive Touch Monitor
