ShenZhen GreenTouch Technology Co.,Ltd

  • 15 Inch Open Frame Touch Display Resistive Monitor
  • 15 Inch Open Frame Touch Display Resistive Monitor
  • 15 Inch Open Frame Touch Display Resistive Monitor
  • 15 Inch Open Frame Touch Display Resistive Monitor
  • 15 Inch Open Frame Touch Display Resistive Monitor
  • 15 Inch Open Frame Touch Display Resistive Monitor

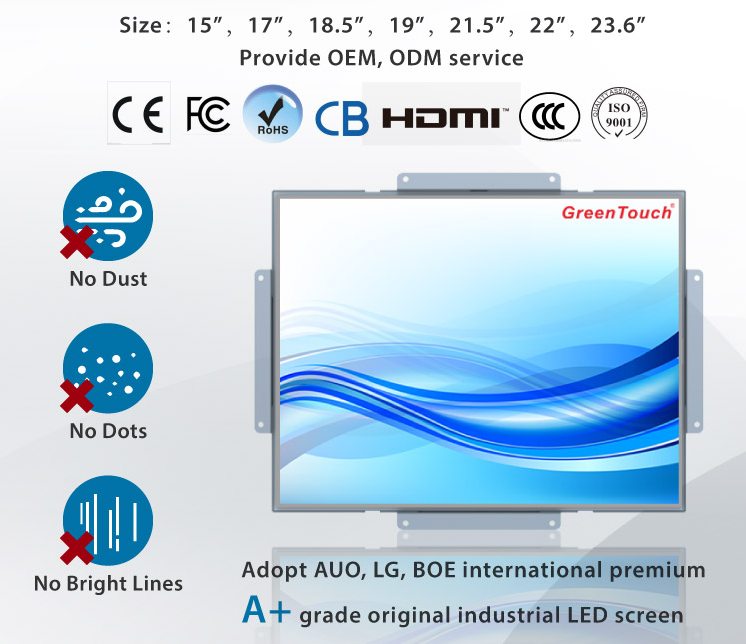

15 Inch Open Frame Touch Display Resistive Monitor

  • $123.86
    ≥1
    Piece/Pieces
screen size:
Resolution:
Share:
Chat Now
  • Product Description
Overview
Product Attributes

Model No.GT-TM-1505A-4R

BrandGreenTouch

Warranty period (years)1-year

CertificationFCC, ce, RoHS, other

colourSilver

screen ratio4:3

seriesFor Home & Student

Screen typeStandard Screen

Horizontal viewing angle160°

Whether to bring its own speakersYes

Vertical viewing angle140°

After-sales serviceOthers

product statusNew

Scope of applicationDesktop

brightness400cd/m

Interface TypeDVI, HDMI, VGA, usb, DP

Contrast700:1

Widescreenyes

Panel typeTFT

place of originChina

characteristicTouch Screen

useFor Home and Student

Display Ports: VGA,DVI,HDMI,DPCertification: CE, FCC,UL,CB,HDMI

Supply Ability & Additional Informations

PackagingCarton + Foam

Productivity1000000

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability1000000

CertificateISO9001 And ISO14001

HS Code8528591090

PortShenZhen,HongKong

Payment TypeL/C,T/T,Paypal,Western Union

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Carton + Foam
Open Frame For Resistive Touch Monitor 15 Inch Open Frame Touchscreen Display


When it comes to sheer convenience, reliability, durability, and user-friendliness, nothing can beat GreenTouch's open frame Touch Monitor . These systems are designed to be quickly and easily swapped out with devices that are pre-installed on equipment or structural housing such as information kiosks or factory assembly line machinery.


Product Overview

GreenTouch's open frame for resistive touch monitor delivers an perfect solution that is cost-effective for worldwide customers requiring a reliable product .Designed with reliability from the start, GreenTouch's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. Our products are available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Our Touch Screen monitor brings you good quality and high reliability. We offers customers the worldwide customers with the standard one-year warranty. From product designing to producing to software developing and to product testing, all processes are handled by GreenTouch,pursuing that the product can run perfectly. All of our monitors have passed (more than 20 items) strict reliability tests.


Product Description

This 15 inch Open Frame Touch Monitor uses the most advanced LED backlight technology which can save energy and power while running and has the thick and sturdy design. The touch screen is built by GreenTouch's professional team and is stable and reliable.producing superior image clarity,resolution, transparency, good accuracy and vivid images, instantly captures and draws the attention of users.

15 Inch Open Frame Touchscreen DisplayOpen Frame for Resistive Touch MonitorOpen Frame Touch Monitors


Product Features

Industrial-grade,reliable quality.

Pass the EMC anti-interference testing(Anti-light,Anti-signal,Anti-electromagnetic interference ).

Industrial metal back shell ,porous heat dissipation design.
Efficient heat dissipation.
Running 24 hours a day.
LED backlight 50000 hours, long life time.
Save energy and power.
low noise.


Product Parameters

Product Name: Open Frame Touch Monitor Display Type: Active Matrix TFT LCD, LED Backlight
Diagonal Dimension: 15.0 " diagonal P/N: GT-TM-1505A-4R
Display Size 329.5mm(W) x256.5 mm(H),Thickness: 48mm Active Area: 304mm(H) x 228mm(V)
Resolution 1024 x 768 Display Colors: 16.7M
Brightness: 450 nits Contrast Ratio: 700:1
Response Tme 8 msec Touch Type: Resistive,single point
MTBF: 50,000 Hours Video Formats: VGA DVI HDMIDP(optional )
View Angle: Horizontal (left / right): ± 80 ° or total 160 ° View Angle: Vertical (up / down): ± 70 ° or a total of 140 °
Temperature: Operating: 0°C to 40°C Temperature: Storage: -20°C to 60°C
Humidity: Operating: 20% to 80%(Non-condensing) Humidity: Storage: 10% to 90% (Non-condensing)
OSD: Digital OSD Mounting Options: VESA MountingOpen Bracket Mounting
Warranty: 1 Year Agency Approvals: FCCCECBCCCHDMI
Input Video Connector: Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector.
Power: External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONSExternal DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm; Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm);
User Controls: OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default, Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu.


Engineering Drawing:GT-TM-1505A-4R

15 inch


Other Show

3425


Product Customizable

GreenTouch provides a wide range of customization options to meet your requirements, including product size or structure,customer Logo,LCD panel brightness (250nits-1000nits),glass of surface treatment AG,AR,AF,display ports(optional VGA+DVI,VGA+DVI+HDMI,VGA+DVI+HDMI+DP or more).


Product Application

In a variety of industries or fields, Touch Screen Monitor can be seen everywhere, widely use for industrial manufacturing,bank,mall,travel,traffic,hotel,fnance,school,goverment library ,etc. In order to facilitate the user self-service inquiry and industry enterprises touch system solution to provide a powerful help.


555555555555555


Other Products

We have our own brand -GreenTouch,already established full-automatic production line and professional sales&after-sales team.In addition to a variety of touch monitor, we also supply 4 Wire Resistive Touch Screen, 5 Wire Resistive Touch Screen,Capacitive Touch Screen,Interactive Touch Foil,Infrared Touch Frame,touch All-in-one PC and other touch products.

6

Looking for ideal 15 Inch Open Frame Touchscreen Display Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Open Frame for Resistive Touch Monitor are quality guaranteed. We are China Origin Factory of Open Frame Touch Monitors. If you have any question, please feel free to contact us.
